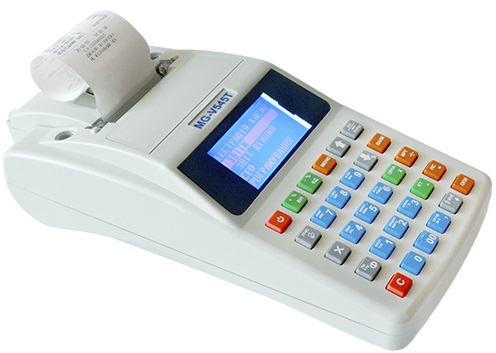

MG-V545T Cash Register

Cash register MG-V545T — this is a portable electronic cash register for recording cash and non-cash payments with the buyer during settlement transactions (sales) and issuing a receipt for purchased goods/services.

Designed specifically for medium and small businesses to combine all the functions of fiscal settlement registrars with high mobility and an excellent price. It is recommended to use in shops, kiosks, markets, pawnshops, pharmacies, cafes and restaurants and other places of commercial activity.

A unique feature of the MG-V545T cash register is the ability to work with it remotely via the WEB interface via the HTTP protocol. This is the only certified device on the territory of Ukraine that has such functionality. You no longer need to travel around the entire network of stores to enter data or change the database of goods, this can be done remotely.

The MG-V545T cash register has a keyboard to control the machine and enter information. The keyboard has 30 keys, 12 of which are used to enter text and numbers, and the rest — function keys.

• Introduced into the State Register of cash registers
• Control tape in electronic form (CLEF)
• Automatic data transfer to the server of the Fiscal Service of Ukraine
• Has a Web interface for remote control via HTTP protocol, which allows programming:

• Programmable collection name
• Integrated cashier graphic indicator 128x64 pixels
• Easy changing "Easy-Load" cash drawer in seconds
• Connecting standard peripherals

The number of programmed goods (services),
(depends on the length of the product name)       -            20 000

Maximum number of
characters in product names                                -               32

Number of characters in check line                -              32

Number of cashiers               -              16 (cashier name 20 characters)

Initial message, lines                          -       5 x 32 characters

Final message, lines                 -       3 x 32 characters
VAT Type:     Included and imposed VAT, compound tax
Number of positive tax groups (including non-taxable group for sales transactions)   -   5+1 excluding VAT

Number of tax groups with a negative total (including the non-taxable group for refund operations)   -   5+1 without VAT

Payments:                                cash, card, credit, check

                         Specifications

                           Print mechanism
Printer: Seiko LTP01-245-02/thermal printing
Print speed, mm/s: 60
Ribbon width, mm:   57.5+-0.5
Maximum roll winding length, m.: 19
Outer roll diameter, mm.: 40

                        Connection connectors
USB-B
RS-232:   RJ12-6x6 (2 x 5V ports)
GSM/GPRS modem: optional
Wi-Fi: optional

                          Operating conditions
Temperature from +5 to +40 С
Relative humidity  from 40 to 80% at +25С

                                   Power

External AC adapter          9B, 1A

                             Physical characteristics
Indicator type: Liquid crystal 128x64 dots (graphic)
Dimensions: (WxDxH), mm: 290x135x80
Weight, kg: 0.810 (without PSU)
