Description of pallet racking

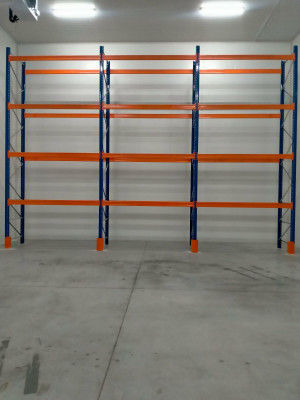

Pallet front racks — collapsible structures created on the basis of a metal frame.
The design of a pallet rack includes the following main components:
vertical racks of pallet racks,
beams (traverses) of pallet racks,< br />Protection of pallet racks,
Rows of pallet racks.
Pallet racks are specially designed for placing and storing goods on pallets (pallets).
Pallet racks can be with different heights and different number of rows.
Not only standard designs in the form of European pallets, but also mesh or plywood flooring, etc. can be used as flooring.
Pallet rack specifications:Rack height (max.): 12,000 mm
Section length (max.): 3 600 mm
Section depth (max.): 1 100 mm
Load per storage tier (max.): 5,500 kg
Load per section (max.): 16,000 kg
Coating type: powder paint
Shelving scheme
.jpg)
1 - Frame
2 - Beam
3 - Frame protection
4 - Foot (attach to the floor)
5 - Stop
6 - Mesh shelf
7 - Lintels and chipboard shelf
8 - Special equipment
9 - Protective mesh
10 - Tie-down
< strong>Pallet Rack Racks
Custom length in 75 mm increments:
Rack — 75x70x1.5 mm (RAL)
Rack — 75x70x1.5 mm (ZN)
Rack — 90x70x1.5 mm (RAL)
Rack — 90x70x1.5 mm (ZN)
Rack — 90x75x2.0 mm (RAL)
Rack — 90x75x2.0 mm (ZN)
Rack — 110x75x2.0 mm (RAL)
Rack — 110x75x2.0 mm (ZN)
Rack — 130x75x2.0 mm (RAL)
Rack — 130x75x2.0mm (ZN)
Pallet rack beams
Types and characteristics of beams
.jpg)
.jpg)
< br />
Pallet rack ties
Protecting pallet rack racks
