Height (mm)
2100
Length (mm)
1250/1500/1875/2500 mm.
Depth (mm)
800
Operating temperature range, °C
+2...+8C
Cooling type
dynamic
Refrigerating Regal with doors ADX TM JUKA
Height (mm)
2100
Length (mm)
1250/1500/1875/2500 mm.
Depth (mm)
800
Operating temperature range, °C
+2...+8C
Cooling type
dynamic

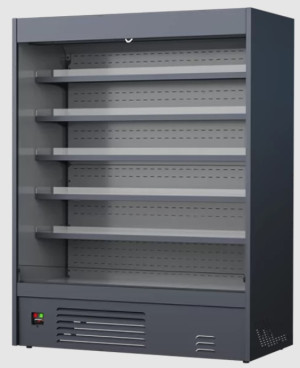

Refrigeration Regal open ADX TM JUKA
Height (mm)
2085
Length (mm)
1250/1500 mm.
Depth (mm)
900 mm.
Operating temperature range, °C
+2...+8C
Cooling type
dynamic

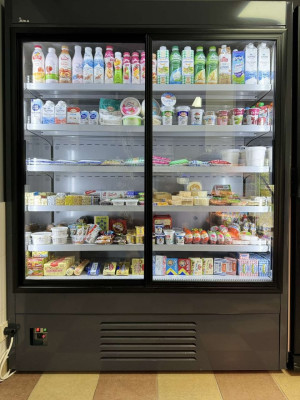

Refrigerating Regal with doors ADI TM JUKA
Height (mm)
2085
Length (mm)
1250/1500 mm.
Depth (mm)
900 mm.
Operating temperature range, °C
+2...+8C
Cooling type
dynamic
How to choose a chest freezer

When choosing a chest freezer, it is important to pay attention to what purpose it will be used for.

Chest freezers are mainly used for the presentation and sale of ice cream, frozen products and semi-finished products, as well as for their storage.
< br /> Chest freezers are divided into two main types: with a transparent glass lid and with a blank lid.



Freezing chests with a blind lid are designed for storing frozen products in the warehouse of a retail outlet, as well as for use in domestic conditions for freezing and storing meat and fish products.

Chest freezers with a solid lid are more reliable than household upright freezers, as the lid always fits snugly against the body under its own weight and does not allow cold to flow out.
there is no way to leak through the bottom of the door like in an upright freezer.

So, a chest freezer is the perfect design for storing frozen food.

As for chest freezers with a glass lid, then they are divided into chests with straight glass and chests with curved glass.

Both the first and second options have their advantages.

How to choose a refrigerated display case

Before choosing a vertical refrigerated display case, you need to decide on the main type of display case.

There are 2 types of vertical refrigerated showcases:

Medium temperature vertical showcase (-1 ... + 10 ° C) for chilled products,
Low temperature vertical showcase (-12 ... -18 ° C) for frozen products.

A distinction is made between static and dynamic air cooling.
Static cooling is the use of a natural flow of cold air within the product display.
Dynamic - forced cooling by a fan of the product display area.
Dynamic cooling is more efficient, but it is desirable to use it for packaged products.
For raw or open sausages, this can cause chapping and drying of products.

There are vertical showcases with built-in and remote units.
The choice of the type of unit depends on the average area of the sales area.
For large supermarkets larger than 400-500 m2, it is better to use units with external cold, which allows localization in refrigeration unit in one place, reduce the noise level and heat transfer in the sales area.

Modern vertical display cases with automatic defrosting type are a basic function. When choosing a vertical refrigerated display case, also pay attention to this.

The depth of the shelves of wall-mounted vertical display cases, the width and depth of exposure are important components of the correct choice of the design of the refrigerated display case.
Pay attention to the models that are best thus satisfy the individual selection of sizes for your outlet.

For better protection against cold loss, it makes sense to use closed vertical refrigerated display cases with sliding or hinged doors.

LED lighting is an important element encourage customers to purchase products from the refrigerated display case.

The price of the refrigerated display case depends on many factors:
1. volume and dimensions of the refrigerated showcase
2. built-in or remote cold;
3. the presence of a larger number of shelves, additional illumination of the shelves, more expensive components of the refrigeration unit, etc.

The cost of the refrigerated display case also includes:
1. Installation of the refrigerated display case
2. Delivery and delivery of a refrigerated display case.

A vertical refrigerating display case is a complex of equipment, components, assemblies, options, as well as the correct installation of a refrigerated display case and its service.
